Form Factor

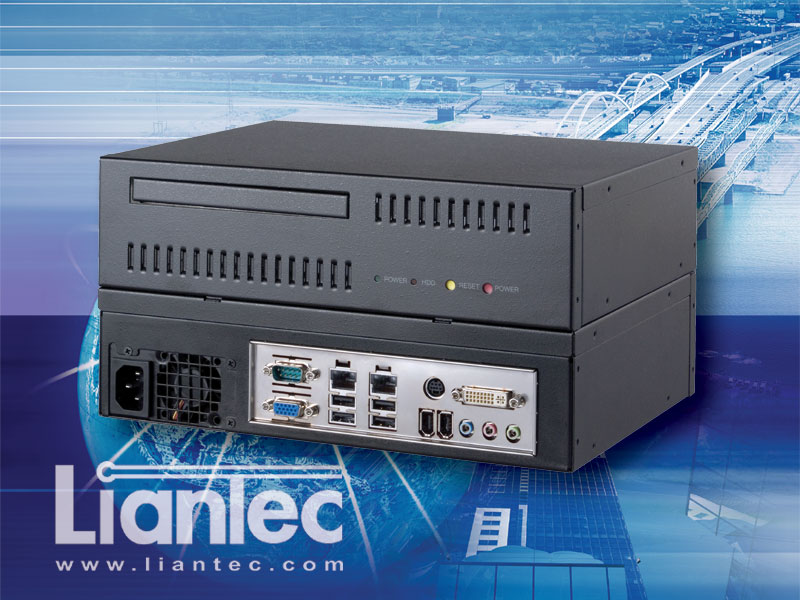

Compact standalone / wall-mountable industrial PC Chassis

Heavy-duty steel construction for harsh industrial environment.

with 270 x 75 x 200 mm (W x H x D) of dimension

Mini-ITX EmBoard

ITX-6900 : Mini-ITX Intel 915GM Express Pentium M EmBoard

ITX-6810 : Mini-ITX Intel Pentium M / Celeron M EmBoard

ITX-6800 : Mini-ITX Intel Pentium M / Celeron M EmBoard

ITX-6700 : Mini-ITX AMD Geode NX EmBoard

Tiny-Bus Modular Expansion Solution

ITX-6700 with Tiny-Bus Modular Expansion Solution

Supports AGP / SiS VB / PCI-based Tiny-Bus Module

ITX-6800 with Tiny-Bus Modular Expansion Solution

Supports Intel DVO / PCI-based Tiny-Bus Module

ITX-6810 with Tiny-Bus Modular Expansion Solution

Supports Intel DVO / PCI-based Tiny-Bus Module

ITX-6900 with Tiny-Bus Modular Expansion Solution

Supports PCI-Express x16 Graphics / Intel SDVO / PCI-Express x4/x1 and PCI-based Tiny-Bus Module

Other customized Tiny-Bus expansion modules for ODM / OEM project based on Liantec Mini-ITX EmBoard.

Rear I/O Panel (1)

(LPC-4670 & 4681)

LianPC-4670 with ITX-6700 EmBoard

LianPC-4681 with ITX-6810 EmBoard

DB15 female VGA and DB9 male COM port

5.1 channel and S/P DIF audio port

Four USB ports

S/P DIF audio port

Dual USB ports

RJ45 Gigabit Ethernet port

Optional DVI / TV-out port with Tiny-Bus module

Rear I/O Panel (2)

(LPC-4690)

LianPC-4690 with ITX-6900 EmBoard

DB15 female VGA and DB9 male COM port

5.1 channel and S/P DIF audio port

Four USB ports

AV / S-Video TV-out

Dual USB ports

RJ45 Gigabit Ethernet port

Optional DVI / TV-out port with Tiny-Bus module

Rear I/O Panel (3)

(LPC-4680)

LianPC-4680 with ITX-6800 EmBoard

DB15 female VGA and DB9 male COM port

Dual USB and RJ45 Gbit Ethernet port (LAN1)

Dual USB and RJ45 Gbit Ethernet port (LAN2)

Dual IEEE1394 Firewire port

Line-in, mic-in, line-out Audio ports

Optional DVI / TV-out port with Tiny-Bus module

Front Panel

Power / reset button and power / HDD access indicated LED

Drive Bay

External slim-type ODD (CD-ROM / DVD-ROM / CD-RW combo)

Internal one 3.5" / 2.5" drive bay

Power Supply

Liantec LPS-FX120 120W AC/DC Mini-ITX power supply

Environment

Power Requirement: 115/230V 50/60Hz AC power input

System Dimension: 270 x 75 x 200 mm (W x H x D)

Package Dimension: 410 x 360 x 215mm (W x H x D)

Net Weight: 2.4 Kg or 5.28 lbs (barebone system)

Gross Weight: 3.1 Kg or 6.82 lbs (with standard package)

Operating Temperature: 0 ~ 40^oC (32 ~ 104^oF)

Storage Temperature: -20 ~ 75^oC (-4 ~ 167^oF)

Operating Humidity: 5 ~ 85% (non--condensing) / 40^oC

Altitude: 10,000 ft. (3,000 m)

Vibration: 15G peak acceleration at 10 msec. of duration

Shock: 1.5 G Max (with package)

Power Safety: UL, CSA and TÜV approval

EMI Certification: CE and FCC class A
