Embedded Peripheral
>> Embedded Ceramic CPU Cooler


||  CEC-4520  |  CPC-1400  |  CPC-1300  ||

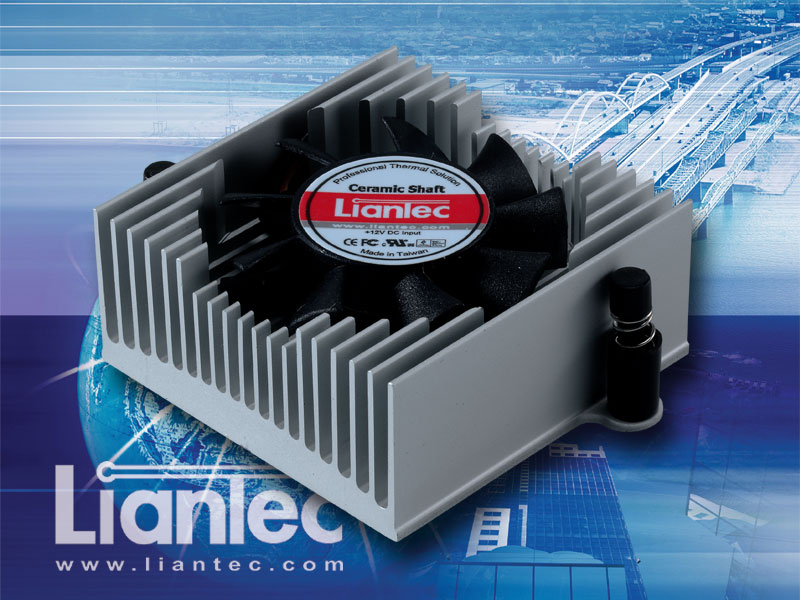

CEC-4520

Embedded Intel Pentium M / VIA C3 / C7 CPU Cooler

Liantec CEC-4520 Embedded Low Profile CPU Cooler with Ceramic Bearing Fan


Specification


Heat Sink:
Material: Complete Aluminum
Dimension Heat Sink: 45 x 45 x 20 mm (L x W x H)
Push Pin: Dual ARX embedded push pin
Cooling Fan:
Fan Speed: 5,500 RPM (optional other rotation for OEM)
Air Flow: 6.7 CFM
Bearing System: Alloy Sleeve with Ceramic Shaft
Power Requirement: +12V DC power input with 3-pin connector
Power Dissipation: 30W
Thermal Resistance: 0.37oC/W
Total Dimension: 45 x 45 x 20 mm (W x L x H)
Cooling Fan Noise: 18.4 dB(A)
Cooling Fan MTBF: 300Khrs continuous operating at 75oC/65% RH
Safety: Cooling Fan Safety Impeller / Frame / Robbin : PBT UL94-V0
           Lead Wire: UL 1007 AWG28 or Equivalent

Ordering Code


CEC-4520:  Embedded 4520 Aluminum Cooler with Ceramic Shaft Fan
	  with External 4-pin DC Power Jack


CPC-1400C

Low Profile 1U Intel Pentium 4 Copper CPU Cooler

Specification


Heat Sink:
Material: Complete Copper
Dimension Heat Sink: 82.5 x 68.0 x 9.5 mm (L x W x H)
Push Pin: Dual ARX embedded push pin
Cooling Fan:
Cooling Fan Dimension: 60 x 60 x 10 mm (L x W x H)
Fan Speed: 5,200 RPM (optional other rotation for OEM)
Air Flow: 23.75 CFM
Bearing System: Alloy Sleeve with Ceramic Shaft
Power Requirement: +12V DC power input with 3-pin connector
Power Dissipation: 60W
Thermal Resistance: 0.30oC/W
Total Dimension: 82.5 x 68.0 x 20 mm (W x L x H)
Cooling Fan Noise: 29.7 dB(A)
Cooling Fan MTBF: 300Khrs continuous operating at 75oC/65% RH
Anti-Shock/Vibration:  Rugged backplate/spring screw configuration
Safety: Cooling Fan Safety Impeller / Frame / Robbin : PBT UL94-V0
           Lead Wire: UL 1007 AWG28 or Equivalent

Ordering Code


CPC-1400C:  Low Profile 1U Intel Pentium 4 Copper CPU Cooler
	    with Ceramic Shaft Cooling Fan and Backplate


CPC-1300C

Low Profile 1U Intel Pentium-III Copper CPU Cooler

Specification


Heat Sink:
Material: Complete Copper
Dimension Heat Sink: 60 x 60 x 12 mm (L x W x H)
Push Pin: Dual ARX embedded push pin
Cooling Fan:
Cooling Fan Dimension: 60 x 60 x 10 mm (L x W x H)
Fan Speed: 5,200 RPM (optional other rotation for OEM)
Air Flow: 23.75 CFM
Bearing System: Alloy Sleeve with Ceramic Shaft
Power Requirement: +12V DC power input with 3-pin connector
Power Dissipation: 60W
Thermal Resistance: 0.30oC/W
Total Dimension: 82.5 x 68.0 x 20 mm (W x L x H)
Cooling Fan Noise: 29.2 dB(A)
Cooling Fan MTBF: 300Khrs continuous operating at 75oC/65% RH
Safety: Cooling Fan Safety Impeller / Frame / Robbin : PBT UL94-V0
           Lead Wire: UL 1007 AWG28 or Equivalent

Ordering Code


CPC-1300C:  Low Profile 1U Intel Pentium-III Copper CPU Cooler
	    with Ceramic Shaft Cooling Fan and Backplate
