LPC-5842 Sample Enquiry

力安科技PC- 5842是一款采用5.25”驱动器大小的EBX系统平台，紧凑型尺寸为210×48x153mm，嵌入式Pentium M /Celeron M CPU架构，内建512Mb DDR SDRAM内存， 4组Intel/ RTL级千兆以太网接口，Mini-PCI和CF插槽，和外部VGA，COM口，USB端口的防火墙，VPN，VoIP和其他嵌入式网络和计算应用.

• 紧凑型5.25”驱动器大小的EBX底盘为210×48×153mm(W x H x D)工业耐用钢/坚固性建筑为苛刻的产业环境

• 采用Intel嵌入式 Pentium M / Celeron M平台。板载Intel超低电压版Celeron M 373(1.0GHz/512KB)和超低电压版的Celeron M 600MHz/512KB为无风扇运行

• 板载可选256/512MB DDR SDRAM内存和DIMM插槽。总存储容量达到为1.5GB DDR SDRAM内存

• 板载4组可选的Intel / RTL级千兆以太网接口

• 板载Mini-PCI和CF插槽.

• 外部VGA，RS232 COM串口，USB 2.0端口

• 全系列12至24V单电源操作与外部AC / DC电源适配器.

Form Factor

5.25" drive-size chassis with heavy-duty steel construction

with 210 x 48 x 153 mm (W x H x D) of dimension

Motherboard

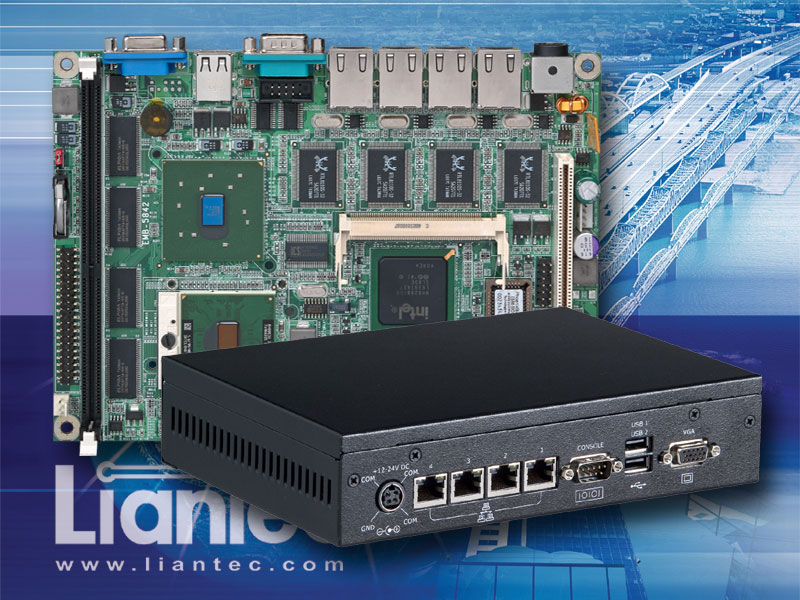

Liantec EMB-5842 Intel Pentium M Multi-GbE EmBoard

CPU

Intel Mobile Pentium M / Celeron M CPU @ 400 MHz FSB

Intel Embedded Pentium M / Celeron M CPU Reference

µFC-PGA Socket Type

- PM745: Pentium M 745 with 1.8GHz / 400FSB / 2MB Cache

- CM370: Celeron M 370 with 1.5GHz / 400FSB / 1MB Cache

µFC-BGA Onboard Mounted Type (LV, ULV Version) for OEM

- PM738: Pentium M LV 738 with 1.4GHz / 400FSB / 2MB

- CM373: Celeron M ULV 373 with 1.0GHz / 400FSB / 512KB

- ULV Celeron M 600MHz CPU with 512KB L2 Cache

Memory

Onboard 256 / 512 MB DDR SDRAM

One DIMM socket supports 1GB DDR SDRAM with optional ECC

Total system memory capacity up to 1.5 GB DDR SDRAM

Chipset

Intel 82852GM GMCH and ICH4 chipset

PCI Enhanced IDE

44-pin primary and 40-pin secondary UltraATA100 IDE ports

VGA Interface

Intel 852GM GMCH built-in Intel Extreme Graphics 2

with Intel Dynamic Video Memory Technology up to 64MB.

External DB15 female connector for CRT on rear I/O panel

Ethernet Interface

Four optional Intel / RTL Gigabit Ethernet interfaces

10/100/1000BASE-TX auto-switching, IEEE802.3U compliant

EMB-5842SN4 with four Intel Gigabit Ethernet interface

EMB-5842SR4 with four RTL Gigabit Ethernet interface

EMB-5842SM4 with four Intel Fast Ethernet interface

EMB-5842SL4 with four RTL Fast Ethernet interface

External four RJ45 connector on rear I/O panel, LED on front panel

External I/O Port

Rear panel: DC jack, 4 RJ45 Ethernet, COM, 2 USB, VGA ports

Front panel: 2 USB ports

Solid State Flash Disk

CompactFlash Card

CompactFlash socket supports CompactFlash Card (CFC)

Supports PIO mode 4 / Multi-Word mode 2

Default setting as secondary IDE port at master mode

Bootable, driver free IDE-based flash disk

Flash memory capacity up to 8 GBytes (and beyond)

DiskOnModule Flash Disk

IDE-based, bootable, driver free DiskOnModule flash disk

Supports PIO mode 4 / Multi-Word mode 2

Flash memory capacity up to 8 GBytes (and beyond)

Power Supply

External Liantec PAD-8012 80W/12V AC/DC power adapter

Environment

Power Requirement: 100-240V AC power input with adapter

System Dimension: 210 x 48 x 153 mm (W x H x D)

Operating Temperature: 0 ~ 40^oC (32 ~ 104^oF)

Storage Temperature: -20 ~ 75^oC (-4 ~ 167^oF)

Operating Humidity: 5 ~ 85% (non--condensing) / 40^oC

Altitude: 10,000 ft. (3,000 m)

Vibration: 15G peak acceleration at 10 msec. of duration

Shock: 1.5 G Max (with package)

Power Safety: UL, CSA and TÜV approval

EMI Certification: CE and FCC class A
