General Specification

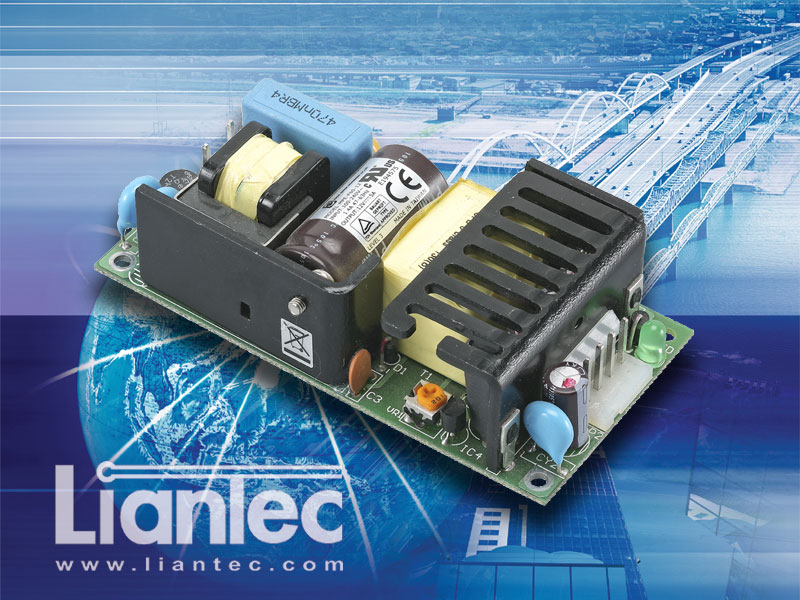

The MPE-F40/60 series are the compact size with 2 x 4
inches of footprint, universal 90 to 264VAC input, 12VDC
output fanless open frame power supply for the
industrial embedded computing platform that features the
compact size, thermal efficient fanless operating for
the industrial small form factor (SFF) fanless computing
solutions.
Power Input
► Input Voltage: Universal
90 ~ 264VAC full range power input. Nominal 115/230VAC.
► Input Frequency: 47 ~
63Hz. Nominal 50/60Hz at 115/230VAC.
► Hold-up Time: 8ms at
nominal AC input voltage (230VAC), rated load.
► Input Current: 1.5A (MAX)
by 115/230VAC.
► Inrush Current: 50A by
115/230VAC, one cycle at 25oC.
► Input Protection:
Non-user serviceable internal AC input line fuse.
Power Output
|
Model |
Output
Voltage |
Min.
Output
Current |
Rated Output
Current |
Line
(*1)
Regulation |
Load
(*2)
Regulation |
Voltage
Setting
(*3) |
Ripple & Noise
p-p
(*4) |
Efficiency
(*5) |
|
MPE-F40-12 |
+12V |
0A |
3.34A |
0.5% |
+/-1% |
+/-1% |
120mV |
84% |
|
MPE-F60-12 |
+12V |
0A |
5A |
0.5% |
+/-1% |
+/-1% |
120mV |
84% |
|
*1: Line regulation
is measuring from high line to low line with
rated load.
*2: Load regulation
is measuring from full load to 10% load.
*3: The output at
60% rated load and input is nominal 115/230VAC.
*4: Measuring by a
20MHz bandwidth limited oscilloscope and the
each output is connected with a 10uF
electrolytic capacitor and a 0.1uF ceramic
capacitor.
*5: measuring at
nominal line and rated load. |
Safety Approvals, EMI /
EMS Specification
►
Safety Approval: UL,
UL60950, 3rd Edition; CB IEC 60950-1; TUV, EN
60950-1:2001
►
Hi-Pot: 4242VDC Min.
input to output.
►
Hold-up Time: 20ms at
nominal AC input voltage (230VAC), rated load.
►
Radiation Conduction:
EN 55022 / CISPR 22 & FCC Part 15, Class B
►
EMS:
►
IEC 61000-4-2, 8KV
air discharge and 6KV contact discharge, Level 3.
►
IEC 61000-4-3, 3V/M,
Level 2.
►
IEC 61000-4-4, 2KV
line & PE, Level 3.
►
IEC 61000-4-5, 2KV,
Level 3.
►
IEC 61000-4-6, 10V,
Level 3.
►
IEC 61000-4-8, 10A/M,
Level 3.
►
IEC 61000-4-11.
Environment
►
Operating Temperature: 0 ~ 50oC at 100%
loading; 0 ~ 70oC at 50% loading.
►
Storage Temperature: -20 ~ +85oC
►
Relative Humidity: 5 ~ 95%RH
►
Altitude: 10K feet by operating; 40K feet by
non-operating.
Dimension
►
50.8 x 101.6 x 30.48mm or 2 x 4 x 1.2 inches (W x D x H) |
