General Specification

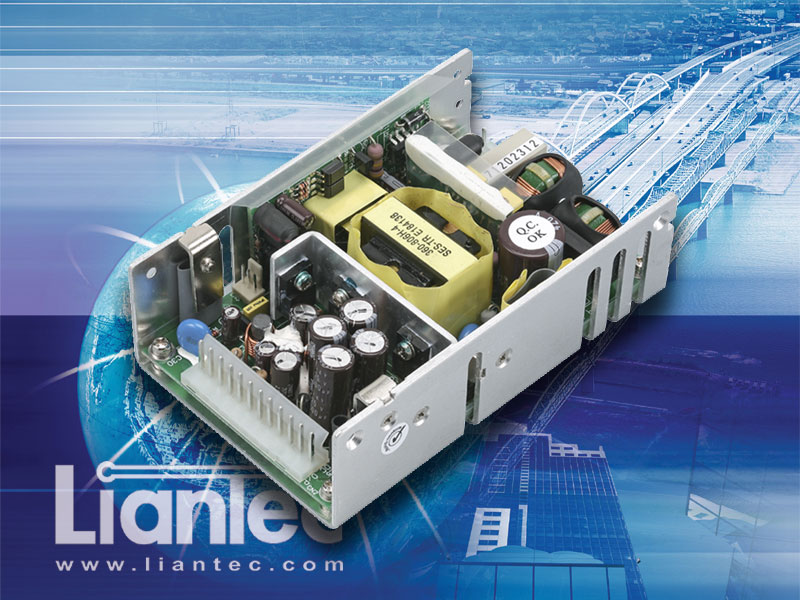

The MPI-806H is a compact size, ATX output power supply
for the industrial embedded ATX-based computing platform
that features the thermal efficient fanless operating.
Power Input
► Input Voltage: 90 ~
264VAC full range power input. Nominal 115/230VAC.
► Input Frequency: 47 ~
63Hz.
► Hold-up Time: 20ms at
nominal AC input voltage (230VAC), rated load.
► Input Current: 2A by
115VAC; 1A by 230VAC.
► Inrush Current: 30A by
115VAC; 60A by 230VAC.
► Input Protection:
Non-user serviceable internal AC input line fuse.
Power Output
|
Output
Voltage |
Min.
Output
Current |
Rated Output
Current (*1) |
Max.
Output
Current |
Line
Regulation |
Load
Regulation |
Ripple & Noise
p-p
(*2) |
Initial Setting
Accuracy (*3) |
|
+5V |
500mA |
5A |
8A |
1% |
2% |
50mV |
5.08V to 5.13V |
|
+12V |
0A |
1.5A |
3A |
1% |
4% |
120mV |
11.4V to 12.6V |
|
-12V |
0A |
0.5A |
--- |
1% |
5% |
120mV |
-11.4V to -12.6V |
|
+3.3V |
0A |
4A |
6A |
1% |
4% |
50mV |
3.10V to 3.50V |
|
+5Vsb |
0A |
0.75A |
--- |
1% |
4% |
120mV |
4.80V to 5.20V |
|
Total Output Power:
80W at 50oC environment temperature.
(*4)
*1: The maximum
total combined output power on the +3.3V and +5V
rails is 40W.
*2: Measured by a
20MHz bandwidth limited oscilloscope and the
each output is connected with a 10uF
electrolytic capacitor and a 0.1uF ceramic
capacitor.
*3: The +5V output
is setting between 5.08V to 5.13V by variable
resistor and all output at 60% rated load and
the other outputs are checked to be within the
accuracy range.
*4: Total maximum
load cannot exceed 60W convection cooling and
80W with 8.6CFM forced air cooling. |
Safety Approvals, EMI /
EMS Specification
►
Safety Approval: UL,
UL60950, 3rd Edition; CB IEC 60950-1; TUV, EN
60950-1:2001
►
Hi-Pot: 4242VDC Min.
input to output.
►
Hold-up Time: 20ms at
nominal AC input voltage (230VAC), rated load.
►
Radiation Conduction:
EN 55022 / CISPR 22 & FCC Part 15, Class B
►
EMS:
►
IEC 61000-4-2, 8KV
air discharge and 6KV contact discharge, Level 3.
►
IEC 61000-4-3, 3V/M,
Level 2.
►
IEC 61000-4-4, 2KV
line & PE, Level 3.
►
IEC 61000-4-5, 2KV,
Level 3.
►
IEC 61000-4-6, 10V,
Level 3.
►
IEC 61000-4-8, 10A/M,
Level 3.
►
IEC 61000-4-11.
Environment
►
Operating Temperature: 0 ~ 50oC at 100%
loading; 0 ~ 70oC at 50% loading.
►
Storage Temperature: -40 ~ +70oC
►
Relative Humidity: 5 ~ 95%RH
►
Altitude: 10K feet by operating; 40K feet by
non-operating.
Dimension
►
128 x 81x 40 mm (W x
L x H) |
