TBM-1220 series

基于Tiny-Bus4通道/30 fps的视频采集模组

带有4通道/30 fps(NTSC / PAL)输入,以及一个Mini-PCI Type-IIIA/B插槽
Tiny-Bus Modular Expansion Solution

Key Features :

TBM-1220是一种采用Tiny-Bus技术的视频采集模组,带有BT878A Philips SAA7131E视频控制芯片(可任选),具有30 fps的视频采集能力和支持AV / S-Video NTSC / PAL复合视频信号输入功能,该产品被广泛应用于基于X86级工业小型化运算平台。

板载两种基于PCI的视频采集控制芯片-- Conexant BT878APhilips SAA7131A(可供选择),都有30 fps的视频采集能力。

·         AV / S-Video复合的视频采集信号输入接口

·         一个mini-PCI type-III A/B插槽

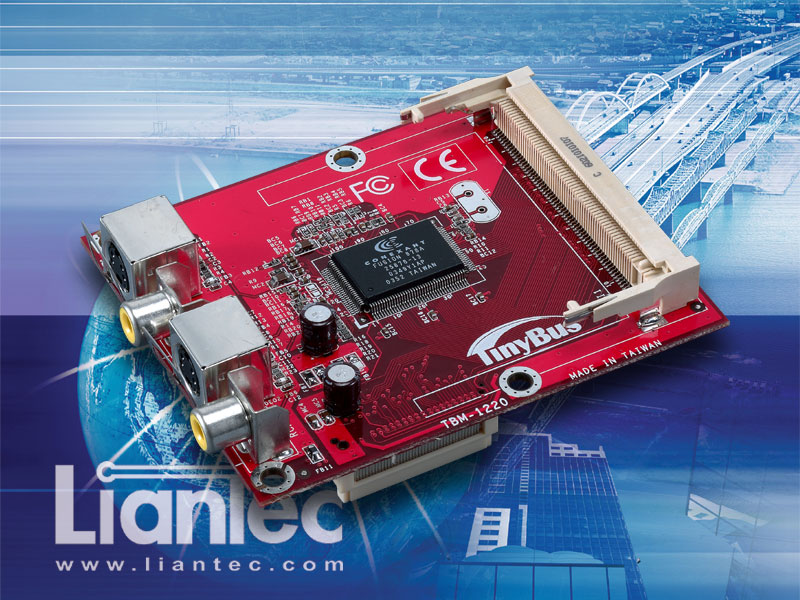

Liantec TBM-1220 Tiny-Bus 4 Channel Video Capture Module

Enlarge the Photo

TBM-1220 Sample Enquiry





Specification

General Specification

Tiny-Bus® Modular Expansion Solution with PCI-based bus interface.

Onboard optional Conexant Fusion 878A or Philips SAA7131E video capture controllers.

Supports 1 - 4 channel / 30 frame per sec. of video input.

External composite AV RCA / S-Video video input interface.

Onboard Mini-PCI Type-IIIA/B socket.

External / Internal Connector

External 3 RCA and 1 S-video connectors (TBM-1220BP with BT878A)

External 2 RCA and 2 S-Video connectors (TBM-1220AP with SAA7131E)

Onboard 124-pin Mini-PCI Type-III socket



Mechanical Drawing

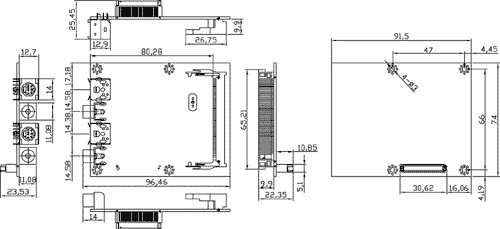

TBM-1220 Mechanical Drawing



Compatible EmBoard

ITX-6965

Mini-ITX Intel GME965 Core 2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6945

Mini-ITX Intel 945GME Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6910

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

x16 PCI Express Graphics Slot and Tiny-Bus Modular Expansion Solution


ITX-6900

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Expansion Solution


ITX-6815

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet, Single DC Power Operating

and Tiny-Bus Modular Expansion Solution


ITX-6810

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Expansion Solution


ITX-6800

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Expansion Solution


ITX-6700

Mini-ITX AMD Embedded Geode NX EmBoard

with VGA, Audio, Gbit Ethernet and Tiny-Bus Modular Expansion Solution


EMB-5740

5.25" Drive-size VIA C7-Eden Multi-Ethernet EmBoard

with VGA, Four Gbit Ethernet, CompactFlash / Mini-PCI Socket

and Tiny-Bus Modular Expansion Solution


EMB-3700

3.5" Drive-size VIA C7-Eden Multimedia EmBoard

with VGA, MPEG-2/4/WMV9 Accelerator, Ethernet, CompactFlash Socket

and Tiny-Bus Modular Expansion Solution



Ordering Code

TBM-1220BP

Tiny-Bus 4-CH / 30 fps BT878A Video Capture and Mini-PCI Module

with 3 RCA / 1 S-Video Video Input and Mini-PCI Type-III socket


TBM-1220AP

Tiny-Bus 4-CH / 30 fps Video Capture and Mini-PCI Module

with 2 RCA / 2 S-Video Video Input and Mini-PCI Type-III socket
