TBM-1240 series

采用Tiny-Bus技术的多端口千兆/高速以太网模组

带有4Intel / RTL千兆/高速以太网接口,以及一个Mini-PCI Type-IIIA/B插槽

Tiny-Bus Modular Expansion Solution

Key Features :

TBM-1240是一种采用Tiny-Bus®扩展模组解决方案技术的多端口以太网模组。它提供板载四组千兆/高速以太网端口,和一个mini-PCI插槽。该产品适用于基于X86级工业小型化的网络运算应用领域,如防火墙、VPN等。



·         四组千兆/高速以太网端口

·         Mini-PCI接口,可支持Wi-Fi无线网络或其他的mini-PCI模组。

·        力安科技的嵌入式Tiny-Bus扩展模组解决方案

Liantec TBM-1240 Tiny-Bus Multiple Ethernet and Mini-PCI Module

Photo Gallery

TBM-1240 Sample Enquiry





Specification

General Specification

Tiny-Bus® Modular Expansion Solution with PCI bus interface.

Onboard four optional Intel 82541PI / 82551QM and RTL8110SC / 8100C controller.

Onboard Type-IIIA/B mini-PCI socket.

External and Internal Connector

External four RJ45 connectors with link / active LED

Onboard Mini-PCI type-IIIA/B socket



Mechanical Drawing

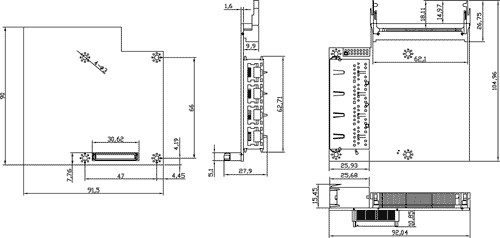

TBM-1240 Mechanical Drawing



Compatible EmBoard

ITX-6965

Mini-ITX Intel GME965 Core 2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6945

Mini-ITX Intel 945GME Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6910

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

x16 PCI Express Graphics Slot and Tiny-Bus Modular Expansion Solution


ITX-6900

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Expansion Solution


ITX-6815

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet, Single DC Power Operating

and Tiny-Bus Modular Expansion Solution


ITX-6810

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Expansion Solution


ITX-6800

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Expansion Solution


ITX-6700

Mini-ITX AMD Embedded Geode NX EmBoard

with VGA, Audio, Gbit Ethernet and Tiny-Bus Modular Expansion Solution


EMB-5740

5.25" Drive-size VIA C7-Eden Multi-Ethernet EmBoard

with VGA, Four Gbit Ethernet, CompactFlash / Mini-PCI Socket

and Tiny-Bus Modular Expansion Solution


EMB-3700

3.5" Drive-size VIA C7-Eden Multimedia EmBoard

with VGA, MPEG-2/4/WMV9 Accelerator, Ethernet, CompactFlash Socket

and Tiny-Bus Modular Expansion Solution



Ordering Code

TBM-1240N4P

Tiny-Bus Four Intel Gbit Ethernet and Mini-PCI Module

with Onboard Four Intel 82541PI GbE and Mini-PCI Type-IIIA/B Socket


TBM-1240R4P

Tiny-Bus Four RTL Gbit Ethernet and Mini-PCI Module

with Onboard Four RTL8110SC GbE and Mini-PCI Type-IIIA/B Socket


TBM-1240M4P

Tiny-Bus Four Intel Fast Ethernet and Mini-PCI Module

with Onboard Four Intel 82551QM and Mini-PCI Type-IIIA/B Socket


TBM-1240L4P

Tiny-Bus Four RTL Fast Ethernet and Mini-PCI Module

with Onboard Four RTL8100C and Mini-PCI Type-IIIA/B Socket
