TBM-1250 series

基于Tiny-Bus的多串口模组

带有可选的4 COM / 1 LPT 8 COM端口,以及一个Mini-PCI Type-IIIA/B插槽

Tiny-Bus Modular Expansion Solution

Key Features :

TBM-1250是一种采用Tiny-Bus®扩展模组解决方案技术的RS232 COM端口模组设备。它提供4/8RS232串口,带有20KV ESD耐压保护。该产品适用于基于嵌入式X86级工业小型化的16C550或兼容UART的通讯领域。



·         板载4/8RS232串口,每个串口都有20KV ESD耐压保护

·         16C550或兼容UART

·         板载一个Mini-PCI Type-IIIA/B插槽

·         力安科技的嵌入式Tiny-Bus扩展模组解决方案



Liantec TBM-1250 Tiny-Bus 4-/8-Port RS232 and Mini-PCI Module

Photo Gallery

TBM-1250 Sample Enquiry





Specification

General Specification

Tiny-Bus® Modular Expansion Solution with PCI bus interface.

Onboard Oxford PCI-based OXmPCI954 multiple RS232 controller.

20KV ESD protection on every serial port.

TBM-1250C4P with 4 RS232 serial ports and 1 SPP/EPP/ECP parallel port.

TBM-1250C8P with 8 RS232 serial ports.

Onboard Type-IIIA/B mini-PCI socket.

External / Internal Connector and Cable Kit

External DB37 male connector (cable connection with 4 DB9 male COM)

Onboard 2 x 13 pin header for parallel port (TBM-1250C4P)

Onboard 2 x 20 pin header for COM 5 to 8 ports (TBM-1250C8P)

Onboard 124-pin mini-PCI Type-III socket

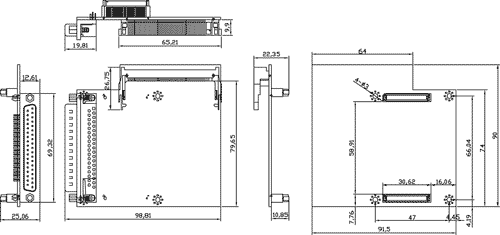

Mechanical Drawing

TBM-1250 Mechanical Drawing



Compatible EmBoard

ITX-6965

Mini-ITX Intel GME965 Core 2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6945

Mini-ITX Intel 945GME Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution


ITX-6910

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

x16 PCI Express Graphics Slot and Tiny-Bus Modular Expansion Solution


ITX-6900

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Expansion Solution


ITX-6815

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet, Single DC Power Operating

and Tiny-Bus Modular Expansion Solution


ITX-6810

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Expansion Solution


ITX-6800

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Expansion Solution


ITX-6700

Mini-ITX AMD Embedded Geode NX EmBoard

with VGA, Audio, Gbit Ethernet and Tiny-Bus Modular Expansion Solution


EMB-5740

5.25" Drive-size VIA C7-Eden Multi-Ethernet EmBoard

with VGA, Four Gbit Ethernet, CompactFlash / Mini-PCI Socket

and Tiny-Bus Modular Expansion Solution


EMB-3700

3.5" Drive-size VIA C7-Eden Multimedia EmBoard

with VGA, MPEG-2/4/WMV9 Accelerator, Ethernet, CompactFlash Socket

and Tiny-Bus Modular Expansion Solution



Ordering Code

TBM-1250C4P

Tiny-Bus 4-Port RS232 and Mini-PCI Module

with 4 RS232 Serial / 1 Parallel Ports and Mini-PCI Type-IIIA/B Socket


TBM-1250C8P

Tiny-Bus 8-Port RS232 and Mini-PCI Module

with 8 RS232 Serial Ports and Mini-PCI Type-IIIA/B Socket
