TBM-1400
series
Tiny-Bus PCIe Dual
MiniCard Module
with Dual PCIe
MiniCard Sockets
Dual Wi-Fi SMA
Connectors and LEDs |
 |
|
|
Key Features :
TBM-1400 is the Tiny-Bus® PCI
Express MiniCard extension module, offers dual onboard full-size
MiniCard extension sockets for the industrial small form factor
(SFF) embedded x86-based computing applications.
-
PCI Express MiniCard standard.
-
Supports dual PCIe MiniCard.
-
Dual SMA antenna
connectors and Wi-Fi WLAN indicated LEDs.
-
Liantec embedded Tiny-Bus®
Modular Extension Solution.
|
|
Liantec

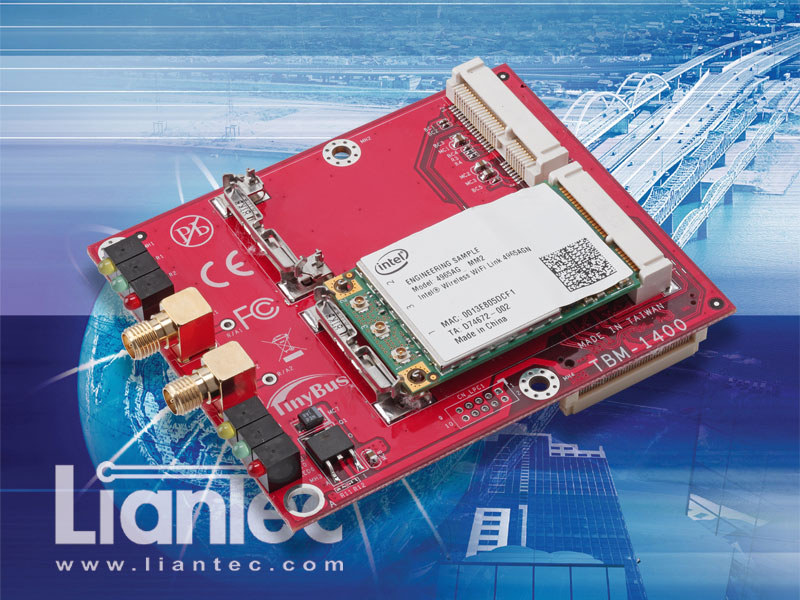

TBM-1400 Tiny-Bus PCIe Dual MiniCard Module with Dual
Wi-Fi SMA Antenna Connectors and LEDs |
Gallery
TBM-1400 Sample Enquiry |
|
|
|
|
|
General Specification
►
Tiny-Bus® Modular Extension Solution with dual x1 PCI
Express bus interfaces.
► Supports two full-size x1
PCI Express MiniCard modules.
► Onboard two full-size PCI
Express MiniCard sockets with holders.
► Dual Wi-Fi SMA antenna
connectors and indicated LEDs.
External / Internal
Connector and Indicated LED
►
Onboard dual PCIe MiniCard
sockets with holder.
►
External dual SMA antenna
connectors and Wi-Fi WLAN indicated LEDs. |
|
|
 |
|
|
 |

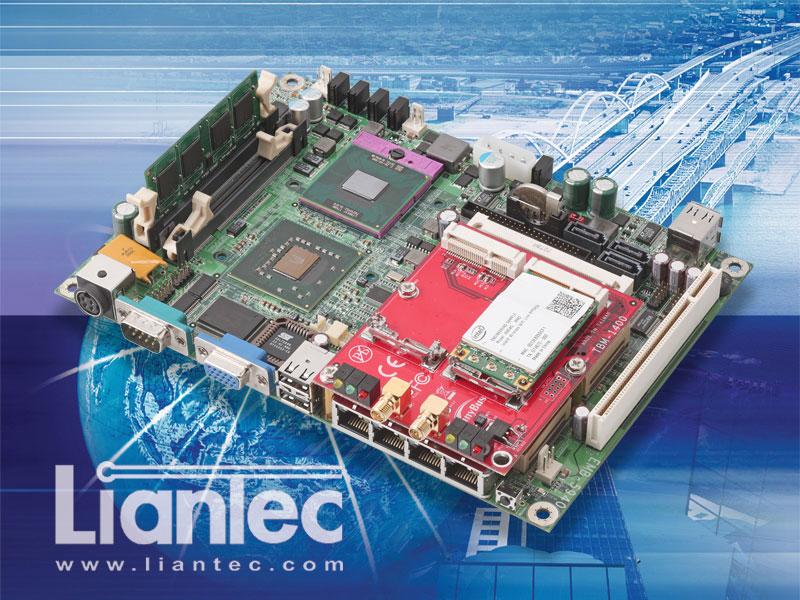

TBM-1400 Tiny-Bus®
dual PCIe MiniCard module on the EMB-5940 5.25”
Intel Core2 Duo mobile Merom Express networking
EmBoard, supports dual full-size PCIe-based
Wi-Fi WLAN MiniCards with external dual SMA
antenna connectors and indicated LEDs. |
|
|
|
|
|
|
|
ITX-6M45 |
Mini-ITX Intel GM45
Penryn Core2 Duo / Quad Mobile Express EmBoard
with GMA X4500 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6965 |
Mini-ITX Intel
GME965 Merom Core2 Duo Mobile Express EmBoard
with GMA X3100 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6945 |
Mini-ITX Intel
945GME Core2 / Core Core Mobile Express EmBoard
with GMA950 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6910 |
Mini-ITX Intel
Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
x16 PCI Express
Graphics Slot and Tiny-Bus Modular Extension
Solution |
|
|
ITX-6900 |
Mini-ITX Intel
Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5950 |
5.25" Intel Atom
945GSE Express Multimedia EmBoard
with GMA950 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5940 |
5.25" Intel Core2
Duo Mobile Express Networking EmBoard
with VGA, Four PCIe
Gbit Ethernet, SATA-II 3Gbit/s, Mini-PCI / CF
Socket
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5930 |
5.25" Intel GME965
Core2 Duo Mobile Express Multimedia EmBoard
with GMA X3100 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-3100 |
3.5" Intel eMenlow
Multimedia EmBoard
with Intel Atom CPU,
DVI/VGA, LVDS, HD Audio, Gbit Ethernet
and Tiny-Bus Modular
Extension Solution
*
Support single PCIe MiniCard only. (TBM-1400F1) |
|
|
|
|
|
|
|
TBM-1400F2 |
Tiny-Bus Dual PCIe
MiniCard Module
with Dual PCIe
MiniCard Sockets and Antenna SMA Connectors |
|
|
TBM-1400F1 |
Tiny-Bus Single PCIe
MiniCard Module
with Single PCIe
MiniCard Socket and Antenna SMA Connector |
|
|
TBM-1400M2 |
Tiny-Bus Dual PCIe
MiniCard Module
with Single PCIe
MiniCard Socket
(without Antenna SMA Connector and Wi-Fi
Indicated LED) |
|
|
|
|
|
