TBM-1450
(Preliminary)
Tiny-Bus PCIe
IEEE1394b Firewire Module
IEEE1394b
100/200/400/800 Mbps Firewire
and Mini-PCI
Type-IIIA/B Socket |
 |
|
|
Key Features :

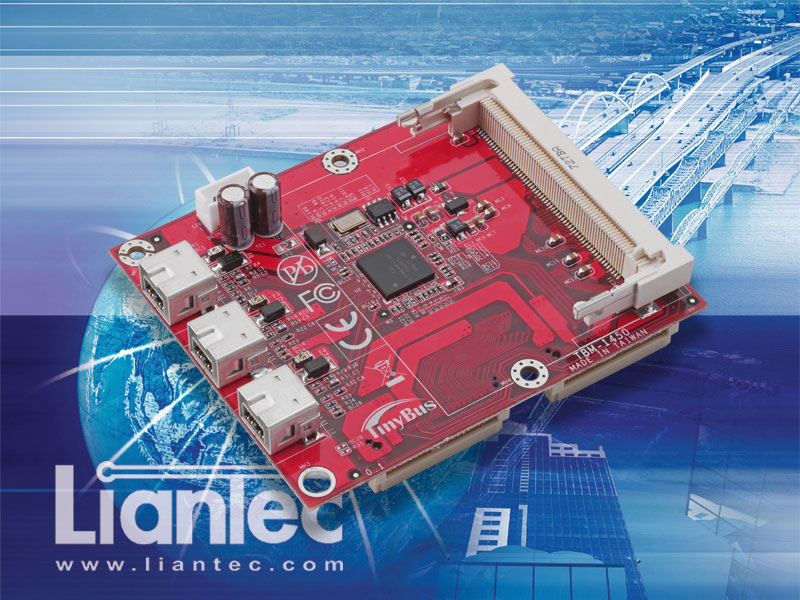

TBM-1450 is the Tiny-Bus® PCIe
IEEE1394b Firewire module, offers 3 IEEE1394b ports with
100/200/400/800 Mbps of data transfer bandwidth for the
industrial small form factor (SFF) embedded x86-based computing
applications..
-
Onboard PCI Express based IEEE1394b
controller.
-
Supports up to 800Mbps of data
transfer bandwidth.
-
Mini-PCI socket for Wi-Fi WLAN or
other mini-PCI modules.
-
Liantec embedded Tiny-Bus®
Modular Extension Solution.
|
|
Liantec
TBM-1450 Tiny-Bus PCIe IEEE1394b Firewire Module |
Gallery
TBM-1450 Sample Enquiry |
|
|
|
|
|
General Specification
►
Tiny-Bus® Modular Extension Solution with x1 PCI Express
and PCI bus interfaces.
►
Onboard PCI Express LSI Agere FW643 IEEE1394 Firewire
controller.
►
Supports multiple IEEE1394 (1394-1995, 1394a-2000, and
1394b).
►
Enhanced with IEEE1394 OHCI 1.2 draft specification.
►
100/200/400/800 Mbps of data
transfer bandwidth.
►
Onboard Type-IIIA/B mini-PCI socket.
External and Internal
Connector
►
External 3 IEEE1394b
connectors
►
Onboard +12V auxiliary power
input connector
►
Onboard Mini-PCI type-IIIA/B
socket |
|
|
 |
|
|
 |
TBM-1450 Tiny-Bus®
PCI Express IEEE1394b Firewire module on the
ITX-6965 Mini-ITX GME965 Core2 Duo Express
EmBoard, supports 800Mbps IEEE1394b Firewire
interfaces. |
|
|
|
|
|
|
|
