TBM-1460
series
Tiny-Bus PCIe SATA-II
/ eSATA Module
with SATA-II and eSATA
Multiplier / RAID
and Mini-PCI
Type-IIIA/B Socket |
 |
|
|
Key Features :
The TBM-1460 is a Tiny-Bus® PCIe
(PCI Express) based eSATA / SATA-II multiplier and RAID level
0/1/10 extension module based on the Tiny-Bus® Modular Extension
Solution, and features the onboard PCIe based eSATA / SATA-II
interfaces with SATA-II multiplier and mini-PCI socket for the
small form factor (SFF) x86-based computing applications with
advanced data storage solutions.
-
PCI Express based SATA-II and eSATA
interfaces with SATA-II multiplier, supports RAID 0/1/10
function
-
Mini-PCI socket for Wi-Fi WLAN or
other mini-PCI modules.
-
Liantec embedded Tiny-Bus®
Modular Extension Solution.
|
|
Liantec
TBM-1460 Tiny-Bus PCIe SATA-II/eSATA Multiplier Module |
Gallery
TBM-1460 Sample Enquiry |
|
|
|
|
|
General Specification
►
Tiny-Bus® Modular Extension Solution with 4-lane PCI
Express and PCI bus interface.
►
Onboard two PCI Express based SiI3132 eSATA / SATA-II
(SATA-300) controllers.
Supports
3Gbps (300MBps) of data transfer rate.
►
Optional onboard SiI4726 SATA-II 5-port multiplier with
RAID processor.
Supports
RAID 0/1/10 mode.
►
Onboard Type-IIIA/B mini-PCI socket.
External and Internal
Connector
►
External 3/4 eSATA-II
(eSATA-300) ports (one share with SATA multiplier host)
►
Optional internal 5 SATA-II (SATA-300) ports (under SATA
multiplier)
►
Onboard Mini-PCI type-IIIA/B
socket |
|
|
 |
|
|
 |

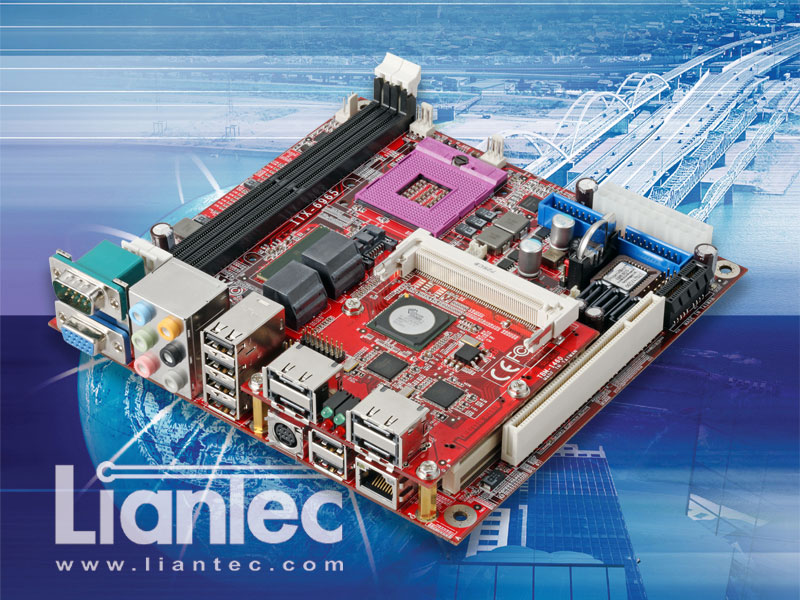

TBM-1460 Tiny-Bus
PCI Express based eSATA / SATA-II multiplier /
RAID module on the ITX-6965 industrial Mini-ITX
EmBoard, features the small form factor (SFF)
computing platform with additional eSATA /
SATA-II (SATA-300) interfaces with onboard
multiplier and RAID 0/1/10 function for the
small form factor (SFF) x86-based computing
platform with advanced data storage solution. |
|
|
|
|
|
|
|
ITX-6M45 |
Mini-ITX Intel GM45
Penryn Core2 Duo / Quad Mobile Express EmBoard
with GMA X4500 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6965 |
Mini-ITX Intel
GME965 Merom Core2 Duo Mobile Express EmBoard
with GMA X3100 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6945 |
Mini-ITX Intel
945GME Core2 / Core Core Mobile Express EmBoard
with GMA950 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
ITX-6910 |
Mini-ITX Intel
Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
x16 PCI Express
Graphics Slot and Tiny-Bus Modular Extension
Solution |
|
|
ITX-6900 |
Mini-ITX Intel
Pentium M / Celeron M Express EmBoard
with GMA900 VGA,
LVDS, HD Audio, Gbit Ethernet, SATA
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5950 |
5.25" Intel Atom
945GSE Express Multimedia EmBoard
with GMA950 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5940 |
5.25" Intel Core2
Duo Mobile Express Networking EmBoard
with VGA, Four PCIe
Gbit Ethernet, SATA-II 3Gbit/s, Mini-PCI / CF
Socket
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-5930 |
5.25" Intel GME965
Core2 Duo Mobile Express Multimedia EmBoard
with GMA X3100 VGA,
LVDS, TV-out, Audio, Gbit Ethernet, SATA-II
3Gbit/s
and Tiny-Bus Modular
Extension Solution |
|
|
EMB-3100 |
3.5" Intel eMenlow
Multimedia EmBoard
with Intel Atom CPU,
DVI/VGA, LVDS, HD Audio, Gbit Ethernet
and Tiny-Bus Modular
Extension Solution
*
Supports 2 eSATA (TBM-1460E2) or 5-Port SATA-II
multiplier (TBM-1460SR), without Mini-PCI |
|
|
|
|
|
|
|
TBM-1460E4P |
Tiny-Bus PCIe
eSATA-II and Mini-PCI Module
with
4 eSATA-II Ports
and Mini-PCI Type-IIIA/B Socket
(without internal 5-port SATA-II multiplier) |
|
|
TBM-1460SRP |
Tiny-Bus PCIe 5-port
SATA-II Multiplier and Mini-PCI Module
with 5-Port SATA-II
Multiplier and Mini-PCI Type-IIIA/B Socket
(without eSATA ports) |
|
|
TBM-1460E3RP |
Tiny-Bus PCIe eSATA
/ SATA-II Multiplier and Mini-PCI Module
with
3 eSATA-II Ports,
5-Port SATA-II Multiplier and Mini-PCI Socket |
|
|
TBM-1460E2 |
Tiny-Bus PCIe
eSATA-II 3Gbit/s Module
with
2
eSATA-II Ports |
|
|
TBM-1460SR |
Tiny-Bus PCIe
SATA-II 3Gbit/s Multiplier Module
with
5-Port
SATA-II 3Gbit/s Ports |
|
|
|
|
|
