TBM-15DVO series

Tiny-Bus Intel DVO Video Extension Module

with Intel DVO-based DVI, TV-out

and Mini-PCI Type-IIIA/B Socket

 Tiny-Bus Modular Expansion Solution

Key Features :

The TBM-15DVO is a Tiny-Bus® Intel DVO-based expansion module with the chipset built-in graphics core and the DVI transmitter / TV-out encoder on the module, offers DVI, TV-out and mini-PCI interface for the small form factor (SFF) embedded x86-based computing applications.

  • Intel DVO-based DVI and NTSC / PAL AV / S-Video TV-out interface.

  • One mini-PCI type-III A/B socket.

  • Liantec embedded Tiny-Bus® Modular Expansion Solution.

Liantec TBM-15DVO : Tiny-Bus Intel DVO-based Graphics and Mini-PCI Module

Photo Gallery

TBM-15DVO Sample Enquiry
　

Specification

General Specification

► Tiny-Bus® Modular Expansion Solution with Intel DVO and PCI interface.

► Onboard Intel DVO-based DVI transmitter with up to 1024 x 768 of resolution.

► Onboard Intel DVO-based TV-out encoder with NTSC / PAL mode.

► Onboard Type-IIIA/B mini-PCI expansion interface.

External / Internal Connector

► External DVI connector.

► External composite AV / S-Video TV-out connector.

► Onboard 124-pin mini-PCI Type-III socket.

　

Mechanical Drawing

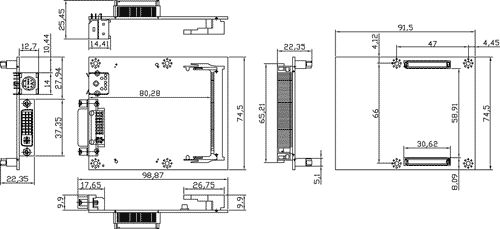

TBM-15DVO Mechanical Drawing

　

Compatible EmBoard

ITX-6815

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet, Single DC Power Operating

and Tiny-Bus Modular Expansion Solution

ITX-6810

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Gbit Ethernet

and Tiny-Bus Modular Expansion Solution

ITX-6800

Mini-ITX Intel Mobile Pentium M / Celeron M EmBoard

with VGA, LVDS, Audio, Dual Gbit Ethernet, IEEE1394 Firewire

and Tiny-Bus Modular Expansion Solution

　

Ordering Code

TBM-15DVOB

Tiny-Bus Intel DVO-based DVI, TV-out and Mini-PCI Module

with Intel DVO-based DVI, AV / S-Video TV-out and Mini-PCI Socket

　
