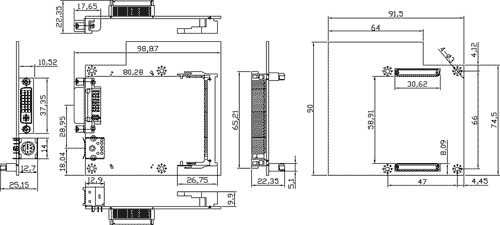

General Specification
► Tiny-Bus® Modular
Expansion Solution with VIA DVP and PCI interface.
►
Onboard VIA VT1632 DVI transmitter with 1600 x 1200 of
resolution.
►
Onboard VIA VT1631single / dual channel 18-/24-bit LVDS
transmitter.
►
Onboard VIA VT1625 TV-out encoder with AV / S-Video
TV-out.
►
Onboard Philips SAA7114 video capture controller with
NTSC / PAL mode.
►
Onboard Type-IIIA/B mini-PCI expansion interface.
Application Notice
-
DVI, TV-out, LVDS shared
with one DVP. (can NOT be used at the same
time.)
-
If DVI comes from
motherboard (shared with onboard 1x18-bit LVDS),
then the on-module DVP will be reserved to TV-out,
2nd LVDS or 2nd DVI.
-
Jumper selectable TV-out / video capture mode on AV
/ S-Video as :
-
if the AV channel is
used by TV-out, then the S-Video channel can be
setting as TV-out or video capture mode.
-
if S-Video channel
is used by TV-out, then the AV channel can be
setting as TV-out or video capture.
External / Internal
Connector
►
External DVI connector.
►
External composite AV / S-Video TV-out connector.
►
Onboard Hirose DF13-40DP-1.25V LVDS connector
►
Onboard 124-pin mini-PCI Type-III socket. |
