TBM-1610 series

基于x16 PCIe ATi M56的MXM Tiny-Bus模组

支持MXM Type-I/II移动型显卡，配备有VGA, DVI, SDTV, HDTV接口

 Tiny-Bus Modular Expansion Solution

Key Features :

TBM-1610是一种Tiny-Bus MXM扩展模组，它基于PCI-Express x16接口和NVIDIA MXM移动图形处理技术。它为基于嵌入式X86级的工业小型化图形运算平台，提供模组扩展解决方案

·         方便升级，采用NVIDIA标准MXM移动图形处理模组

·         先进的基于x16 PCIe的GPU芯片，并且装载有显存颗粒

·         配备有VGA, DVI, SDTV, HDTV接口

·         超薄型附加卡形式的解决方案满足工业1U(1.75 inches)系统的要求

·         采用力安嵌入式的Tiny-Bus模组扩展解决方案

Liantec TBM-16SDVOB : Tiny-Bus Intel SDVO-based Graphics and Mini-PCI Module

Click for Photo Gallery

TBM-1610 Sample Enquiry
　

Specification

General Specification

► Tiny-Bus® Modular Expansion Solution with x16 PCI Express Graphics interface.

► NVIDIA MXM (Mobile PCI-eXpress Module) technology.

► MXM Type-I/II socket supports MXM Type-I/II mobile graphics module.

► External DVI and HDTV Y/Pb/Pr RCA connectors.

► Board-to-board connection for TV-out interface with EmBoard.

► Cable connection for VGA interface with EmBoard.

Application Notice

► The motherboard should change the 4-USB connector to 2-USB connector.

External / Internal Connector

► Onboard MXM socket for MXM type-I/II mobile graphics module.

► External DVI connector.

► External Y/Pb/Pr HDTV RCA connectors.

► Onboard TV-out pin header connector (with TV-out connector on EmBoard)

► Onboard VGA pin header connector (with VGA connector on EmBoard)

Cable Kit

► TBM-1610 module-to-Motherboard VGA cable.

　

Mechanical Drawing

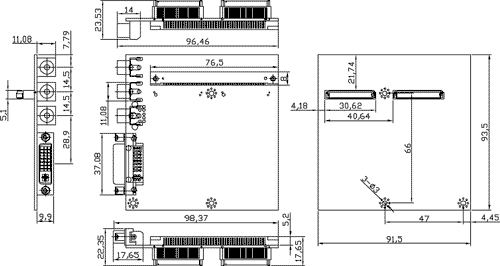

TBM-1610 Mechanical Drawing

　

Compatible EmBoard

ITX-6965

Mini-ITX Intel GME965 Core 2 Duo Mobile Express EmBoard

with GMA X3100 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution

ITX-6945

Mini-ITX Intel 945GME Core Mobile Express EmBoard

with GMA950 VGA, LVDS, TV-out, HD Audio, Gbit Ethernet, SATA-II 300

and Tiny-Bus Modular Expansion Solution

ITX-6900

Mini-ITX Intel Mobile Pentium M / Celeron M Express EmBoard

with GMA900 VGA, LVDS, HD Audio, Gbit Ethernet, SATA

and Tiny-Bus Modular Expansion Solution

　

Ordering Code

TBM-1610MXM

Tiny-Bus x16 PCIe MXM Mobile Graphics Module

Supports NVIDIA MXM Type-I/II Mobile Graphics Module

with DVI, SDTV, Y/Pb/Pr HDTV and VGA Interfaces

TBM-1610MG7600

Tiny-Bus x16 PCIe MXM NVIDIA Go7600 Module

with MXM Type-II NVIDIA GeForce Go 7600 / 256MB Module

DVI, SDTV, Y/Pb/Pr HDTV and VGA Interfaces

　
