General Specification

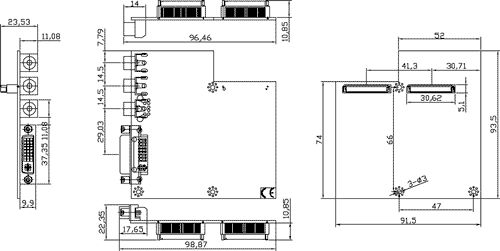

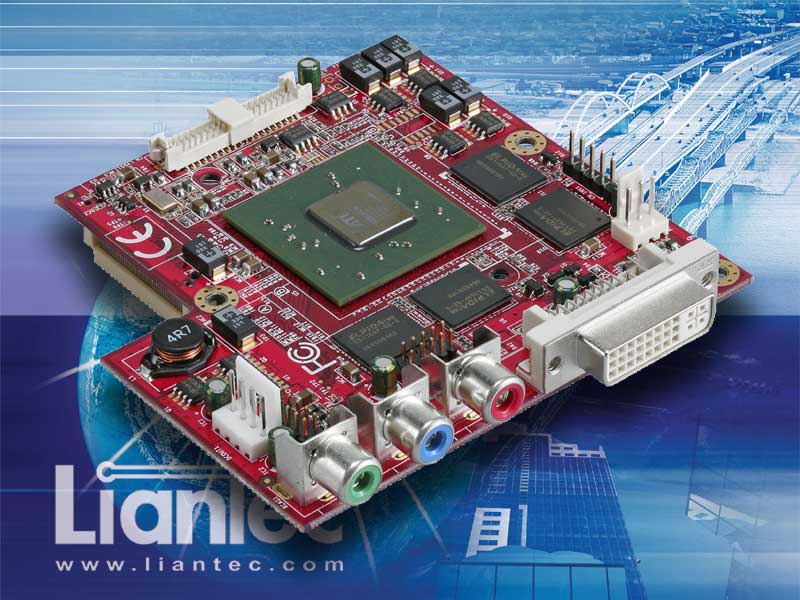

► Tiny-Bus® Modular
Expansion Solution with x16 PCI Express Graphics
interface.
►
Onboard ATi mobility M56 GPU and 256MB graphics memory.
►
GPU built-in MPEG1/2/4 decode / encode acceleration.
►
DXVA support and hardware motion compensation, iDCT,
DCT, color space conversion.
►
VGA supports up to WXGA (1920 x 1200) and QXGA (2048 x
1536).
►
DVI supports up to UXGA (1600 x 1200) of resolution.
►
HDTV supports up to 1080i mode.
►
Onboard 230MHz dual channel LVDS interface.
Application Notice
► The motherboard should
change the 4-USB connector to 2-USB connector.
External / Internal
Connector
► External DVI connector.
► External Y/Pb/Pr HDTV RCA
connectors.
► Onboard 40-pin Hirose
DF13-40DP-1.25V LVDS connector.
►
Onboard VGA pin header, cable connection with VGA port
on motherboard.
Cable Kit
► Auxiliary +12V power
cable.
►
module-to-motherboard VGA cable. |
