TBM-16SDVOX
series
Tiny-Bus® Dual LVDS
Extension Module
with Dual Intel SDVO /
LVDS Transmitters
Supports Two
2*18-/24-bit LVDS Interfaces |
 |
|
|
Key Features :
TBM-15DVO是基于Intel
DVO的Tiny-Bus扩展模组，集成有图形处理核心和DVI传输器/TV-out译码器。它为基于嵌入式X86级的工业小型化图形运算平台，提供DVI,
TV-out和mini-PCI接口界面。
·
基于英特尔DVO技术的DVI，NTSC
/ PAL AV / S-Video TV-out接口。
·
带有一个mini-PCI-III
A/B插槽
·
采用力安嵌入式的Tiny-Bus模组扩展解决方案 |
|
Liantec
TBM-16SDVOX Tiny-Bus Dual Intel SDVO LVDS Extension
Module |

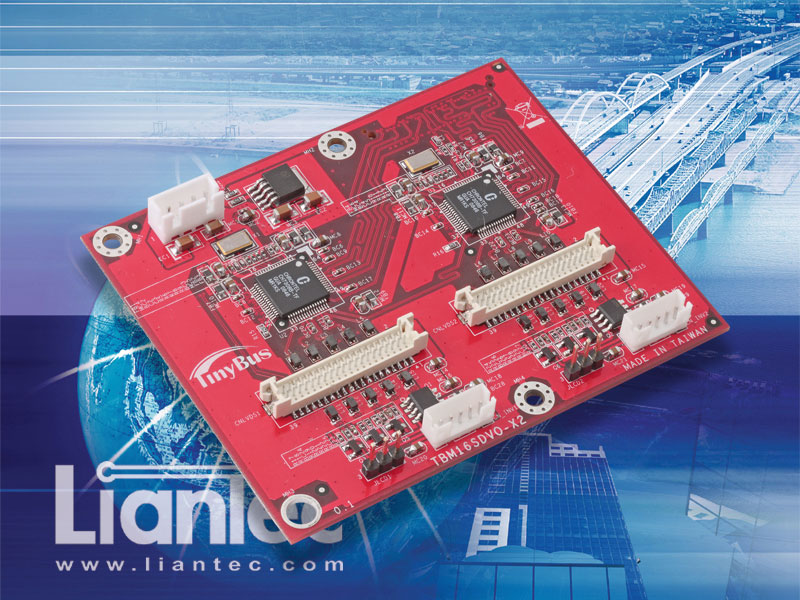

Gallery
TBM-16SDVOX Sample Enquiry |
|
|
|
|
|
General Specification
► Tiny-Bus® Modular
Extension Solution with dual channel Intel SDVO
interfaces.
►
Onboard dual Intel SDVO-based CH7308 LVDS transmitters.
► Supports up to 165M
pixels/s.
► Resolution up to 1600 x
1200 (1920 x 1200 with reduced blanking)
► Two single / dual channel
18-/24-bit LVDS TFT LCD interfaces.
►
+12V DC backlight inverter power interface.
Internal Connectors
► Onboard dual Hirose
DF13-40DP-1.25V LVDS connectors.
► Onboard dual LCD
backlight inverter power connectors.
► Onboard auxiliary +12V
power input connector. |
|
|
 |
|
|
|
