一般规格

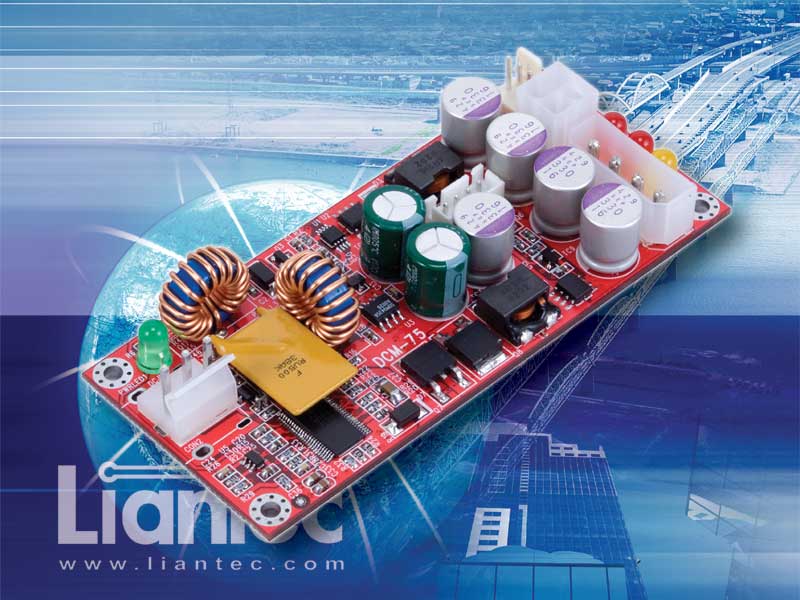

85 watt DC to DC power converter with 5V, 12V, 5Vsb
power output.
电源输入
►
11.5 ~ 30.0VDC full range power input (8A MAX)
►
Onboard Polymeric PTC (PPTC) fuse protection
►
External 3/4-pin MiniDIN DC power jack connector or
internal 4-pin wafer connector.
►
Onboard power-in LED.
电源输出
►
+5V / 5Vsb with shared 8A MAX
► +12V with
4A MAX
►
Over / under voltage protection : all output
►
ESD protection : all output
►
Total power capacity : 85 watt
►
Internal 4-pin +5V / +12V, 4-pin +12V and 3-pin wafer
(fan) power connectors.
►
Onboard power-out LED
on every voltage.

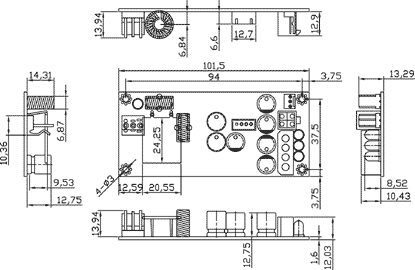

机构尺寸
►
45 x 101.5 x 15 mm (W
x L x H) |
