一般规格

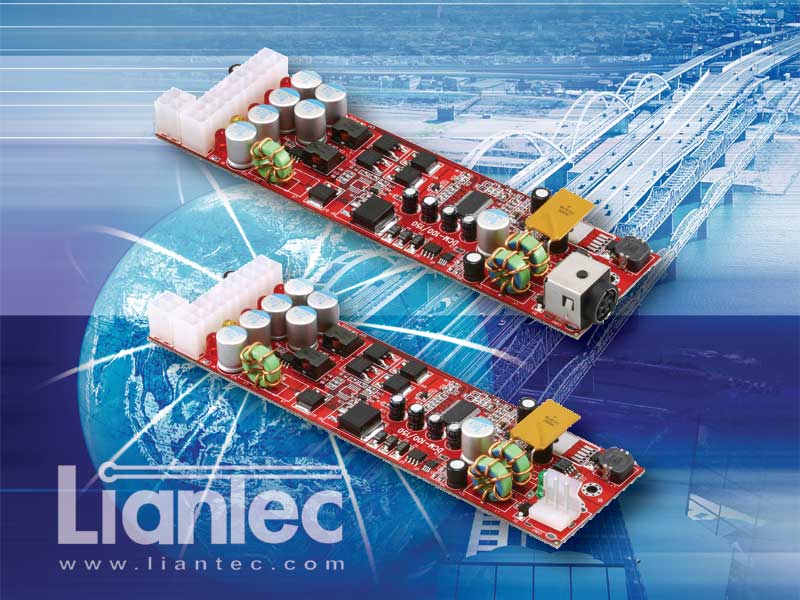

150 watt DC to DC power converter with 3.3V, 5V, 12V,
-12V, 5Vsb ATX power output.
电源输入
►
19~ 24VDC full range power input
(8A MAX)
►
Onboard Polymeric PTC (PPTC) fuse protection
►
External 3/4-pin MiniDIN DC power jack connector or
internal 4-pin wafer connector.
►
Onboard power-in LED.
电源输出
►
+3.3V with 5A MAX
►
+5V / 5Vsb with shared 8A MAX
► +12V with
8A MAX
►
-12V with 0.5A MAX
►
Over / under voltage protection : all output
►
ESD protection : 3.3V, 5V, +12V, 5Vsb
►
Total power capacity : 150 watt
►
Internal 20-pin ATX, 4-pin +12V and dual 3-pin wafer
(fan) power connectors.
►
Onboard power-out LED
on every voltage.
电源输出
►

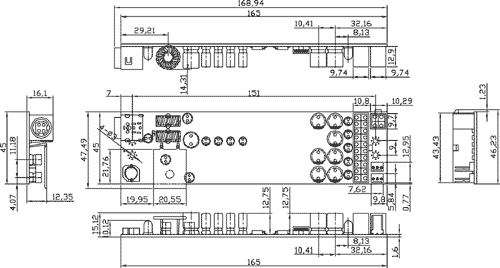

45 x 165 x 15 mm (W x
L x H) |
