General Specification
150 watt DC to DC ATX power converter based on Tiny-Bus®
Modular Expansion Solution with 3.3V, 5V, 12V, -12V,
5Vsb ATX power output.
Power Input
►
Full range 19 to 24VDC power input
with 8A MAX
►
Onboard Polymeric PTC (PPTC) fuse protection
►
External 4-pin MiniDIN DC jack connector with power-in /
system-on LED
►
External power-on and reset button, internal connector
for motherboard.
Power Output
►
+3.3V with 5A MAX
►
+5V / 5Vsb with shared 8A MAX
►
+12V 8A MAX
►
-12V with 0.5A MAX
►
Over / under voltage protection : all output
►
ESD protection : 3.3V, 5V, +12V, 5Vsb
►
Total power capacity : 150 watt
►
Internal 20-pin ATX and 4-pin +5V / +12V power
connectors

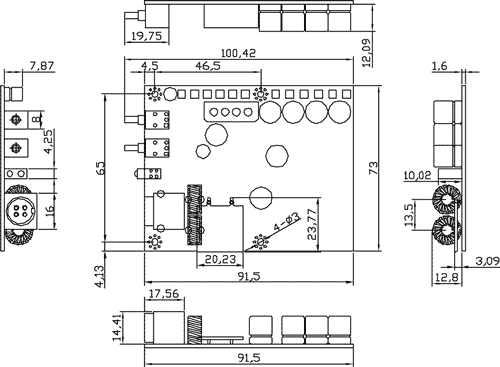

Dimension
►
74.5 x 91.5 x 15 mm
(W x L x H), Tiny-Bus® form factor |
